Light Type 0.5t 1t 2t 3t 5t Remote Control Electric Winch For Pulling Lifting

Product Categories

LANGFANG WISDOM IMPORT & EXPORT CO., LTD.

Contact Now

Place of Origin : HEBEI ,CHINA

MOQ : 1 SET

Price : $100.00 - $750.00/ Piece

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 3000 Set/Sets per Year

Delivery Time : 10~15 working days, which will be adjusted according to different products and inventory

Packaging Details : Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.

Product name : 0.5t 1t 2t 3t 5t Light Type Remote Control Electric Winch for pulling and lifting

Power : 710W

Power Source : Electric

Application : CRANES, hoisting and pulling

Voltage : 120V, 220V 50Hz, 380V 50Hz 3 Phases, 415V 50Hz 3Phases

Capacity : 0.5t 1t 2t 5t

Brake : Electromagnetic brake

Lifting Speed : 8-30m/min

Control : Pandant control, Remote control

Contact Now

0.5t 1t 2t 3t 5t Light Type Remote Control Electric Winch for pulling and lifting

Feature

(1) Top quality with competitive price.

(2) Widely used in the double beam bridge crane and gantry crane.

(3) Easy to install and high quality.

(4) Compact structure and reasonable design.

(5) Overload protection , shock protective, Explosion-proof performance

Specification

0.5t 1t 2t 3t 5t Light Type Remote Control Electric Winch for pulling and lifting
Item	Value
Capacity (kg)	500-1000	1000-2000	1500-3000	2500-5000
Lifting Speed (m/min)	16/8	16/8	16/8	16/8
Wire Rope Diameter (mm)	7.7	11	13	15
Lifting Height (m)	30-100	30-100	30-100	30-100
Power (kw)	1.5	3.0	4.5	7.5
Voltage (v)	380	380	380	380
N.W. (Kg)	80	140	180	248

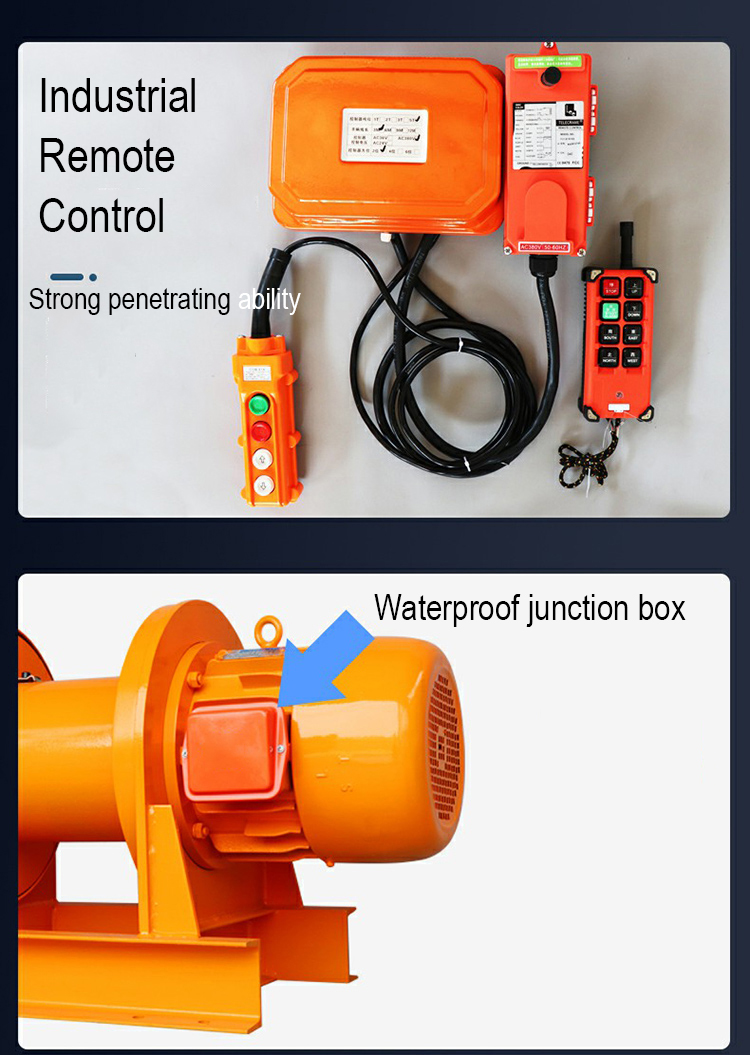

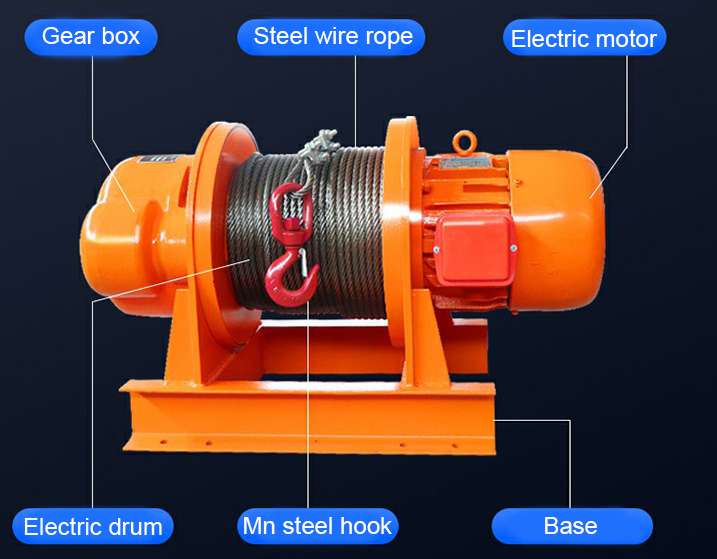

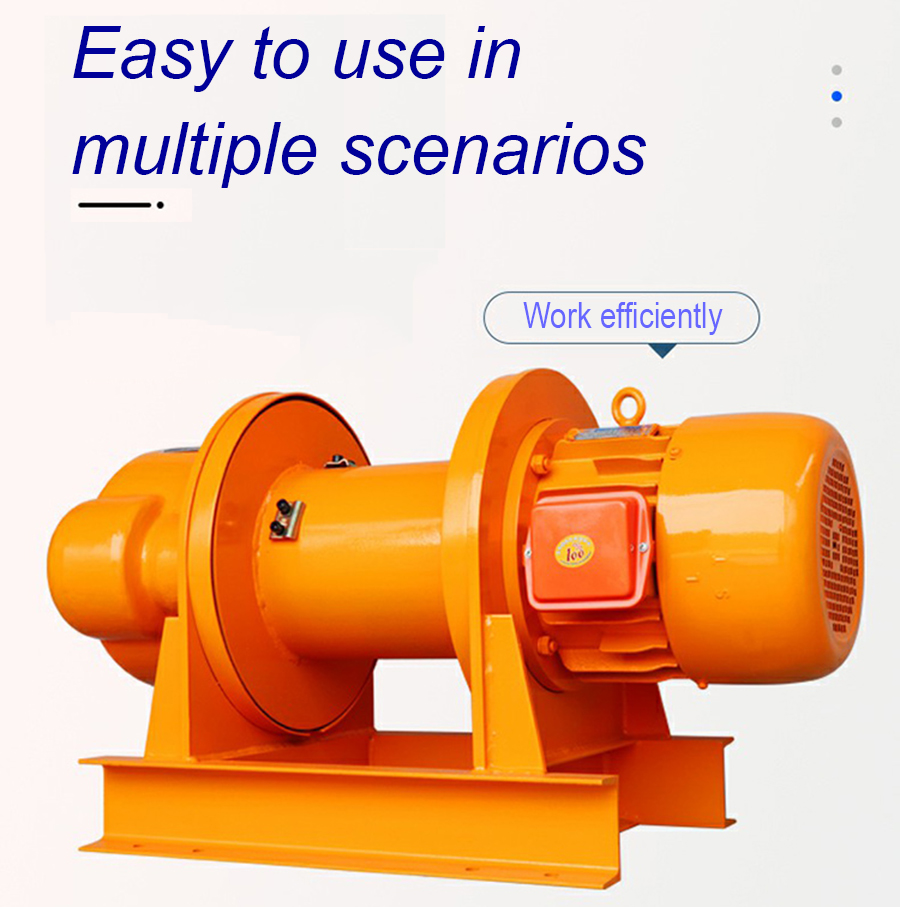

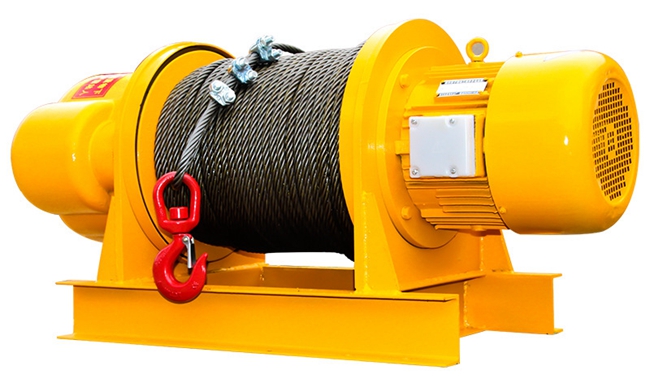

Pictures of 0.5t 1t 2t 3t 5t Light Type Remote Control Electric Winch for pulling and lifting

Product Tags:

710w remote control electric winch
